Wolf Tooth Components

Wolf Tooth Rear Axle

Wolf Tooth Rear Axle

Regular price €39,95 EUR
Regular price Sale price €39,95 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Thread Pitch and Axle Length
View full details

INFO

The Wolf Tooth Rear Axle does more than secure wheels

When developing the Rear Axle, Wolf Tooth engineers knew that they wouldn’t be able to get away with any old factory replacement part, even if it was made in Minnesota to aerospace standards. The Wolf Tooth Rear Axle uses a captive steel washer under the head to reduce friction on the dropout face. This protects your expensive fork, transfers more of the tightening torque to clamping load for a stiffer interface and prevents the axle from sticking or galling when you want to remove it.

These are also a great replacement option for lost or damaged stock axles. Always apply a small amount of grease to the washer and threads when installing.

It doesn't stop there. Check out the Axle Caps for added protection and the Trainer Caps for those dreaded days when you can’t get out to play.

COMPATIBILITY:

  • 12mm Rear Thru Axle
  • Axle length is compatible +/- 2mm
  • Axle length is independent of hub dimensions. Please use the Axle measurement guide to find the axle length needed. Make sure to print it at 100% for accurate measurements.

[ A4 Metric Guide ]

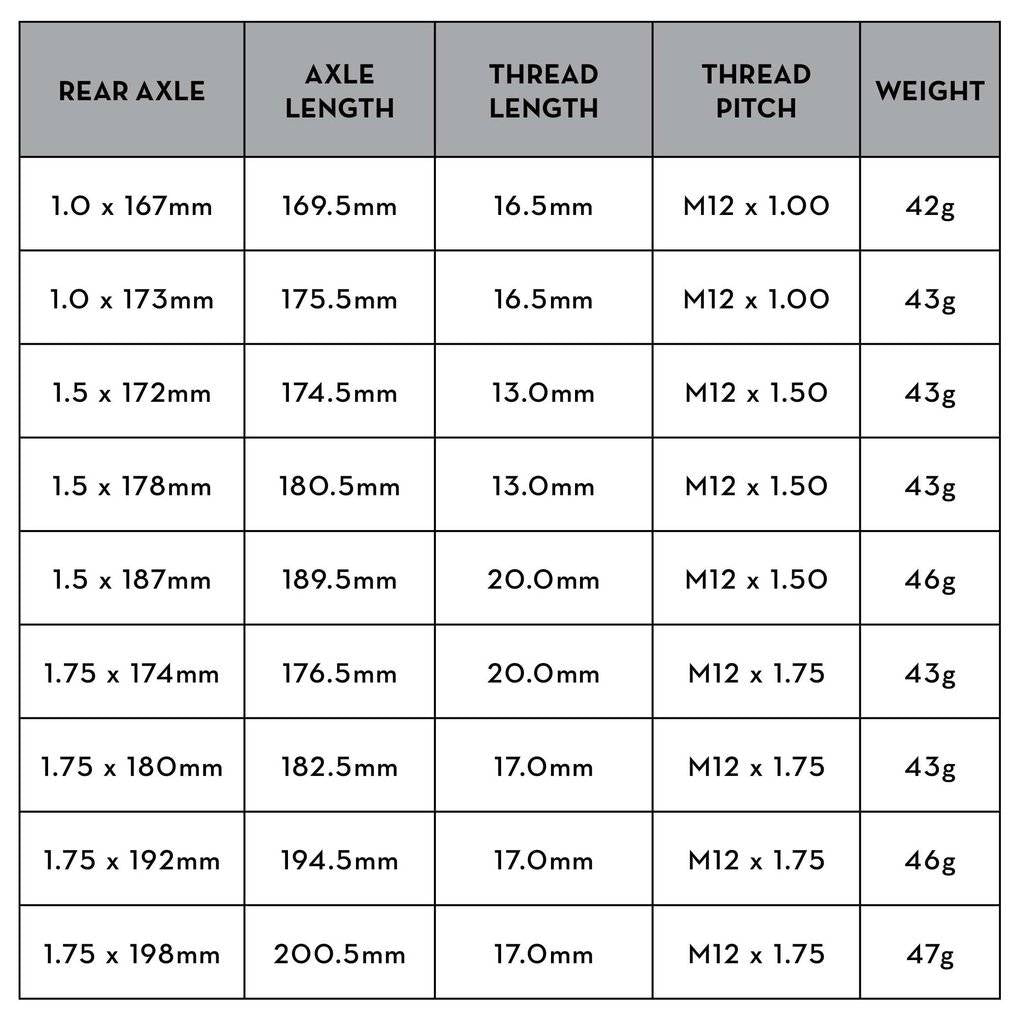

Wolf Tooth rear Axle Size Chart

RELATED PRODUCTS:

  • Axle Caps
  • Axle Trainer Caps
  • Bike Bling
  • Boostinator

TECH SPECS:

Weight 167 • 42g | 172-180 • 43g | 187-192 • 46g | 198 • 47g
Material 7075-T6 aluminum, stainless steel washer
Diameter 12mm

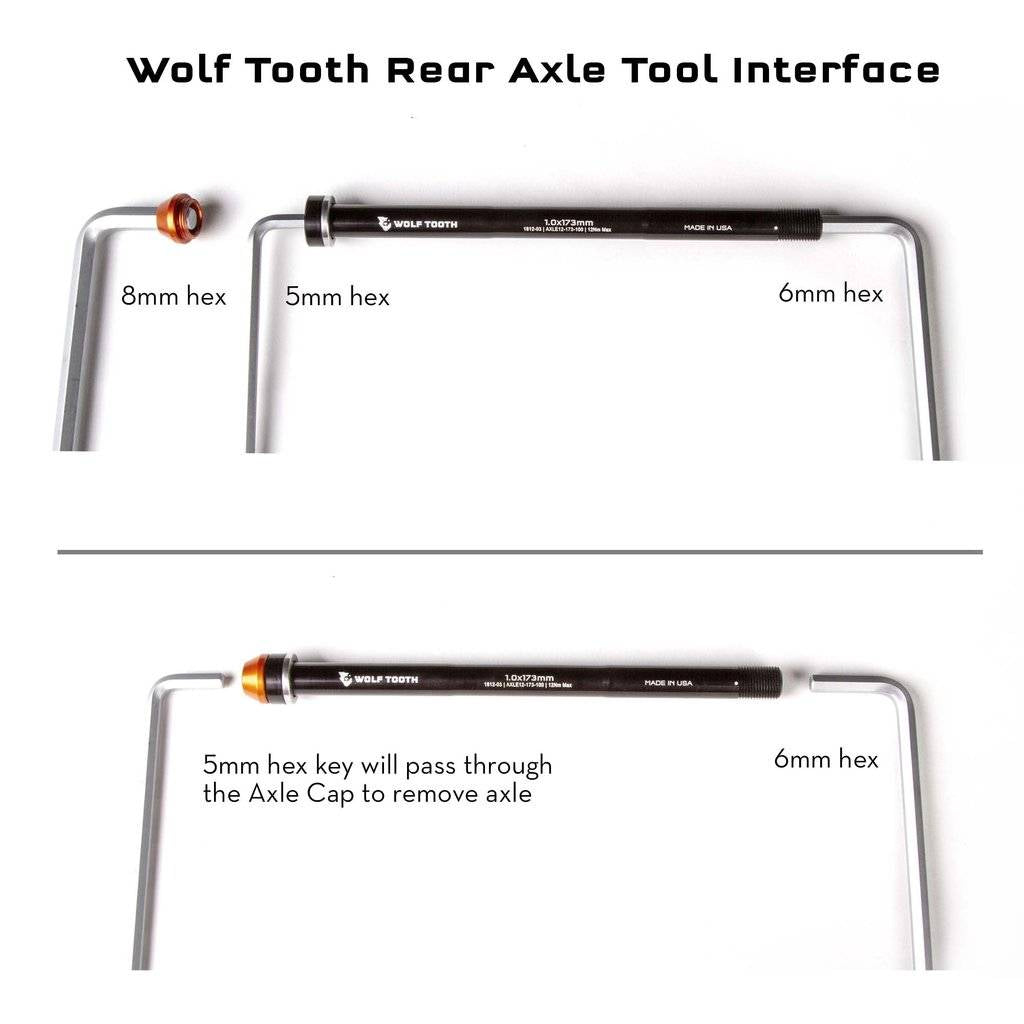

Tool Interface 5mm and 6mm hex key
Torque Spec 12 Nm max
Designed Minneapolis, MN USA
Manufactured Minneapolis, MN USA
