Wolf Tooth Performance ZS Headsets - Zero Stack Lower

This is only the Lower bearing cup, You also need the Upper cup for a complete headset

• Wolf Tooth headsets are machined here in our Minnesota shop with aircraft-grade 6061 aluminum. They are designed to be lightweight, strong, and durable. Performance Headsets with Enduro black oxide bearings have a one-year warranty. Our headsets have three levels of industry-leading custom sealing to protect bearings from the elements and prolong the life of the headset. Available in a variety of colors. These ZS headsets are for frames with internal bearing cups that are pressed into the frame.

  Compatibility

  • Any frame that uses ZS (Zero Stack) headsets with 44mm upper and 56mm lower head tube inner diameter.
  • Uppers and lowers sold separately.
  • Enduro black oxide steel sealed bearings included on both the upper and lower.

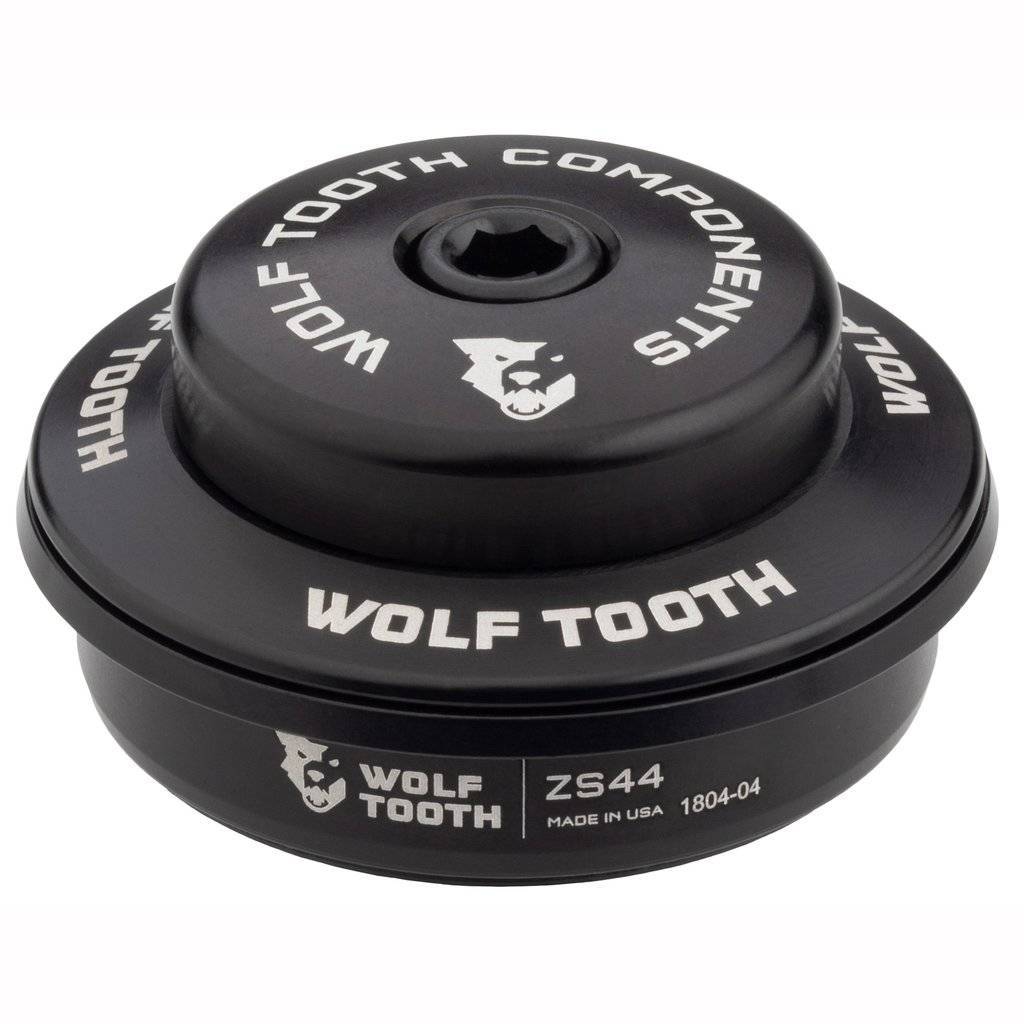

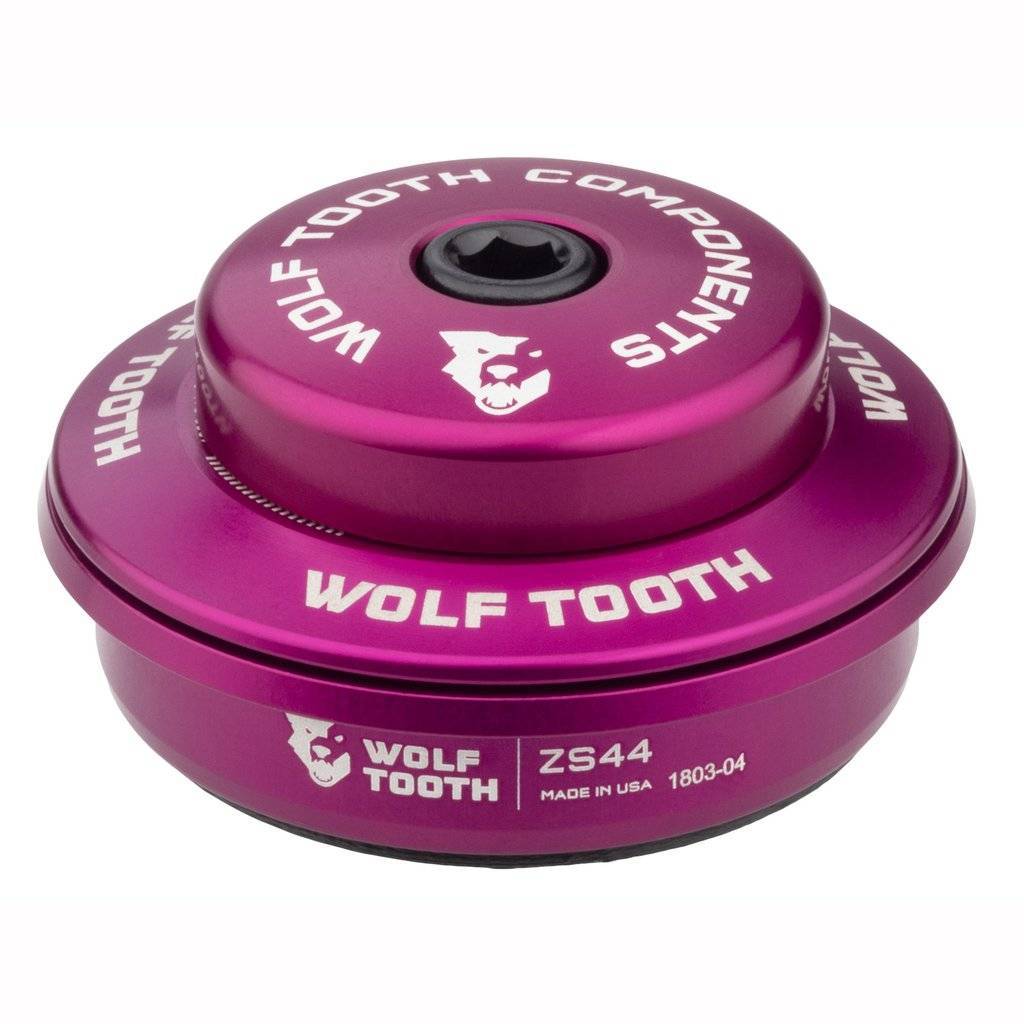

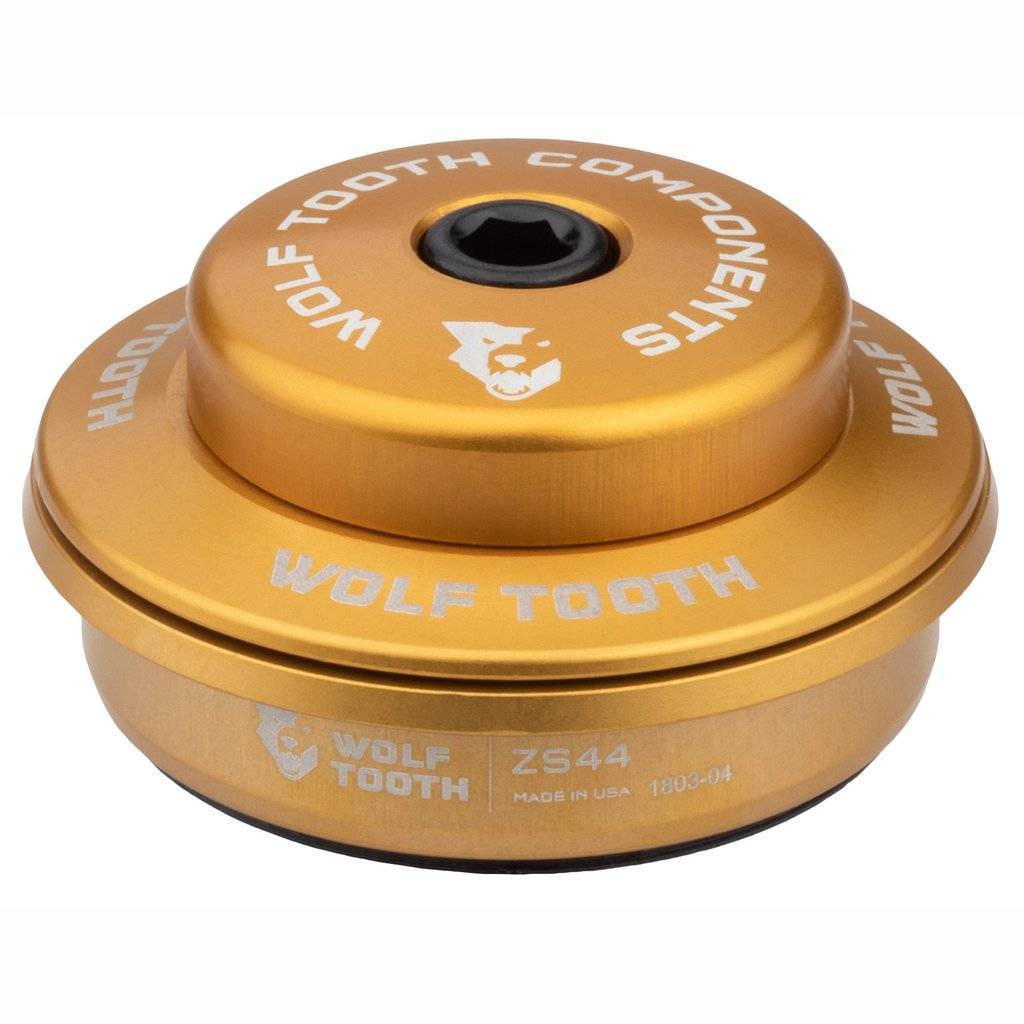

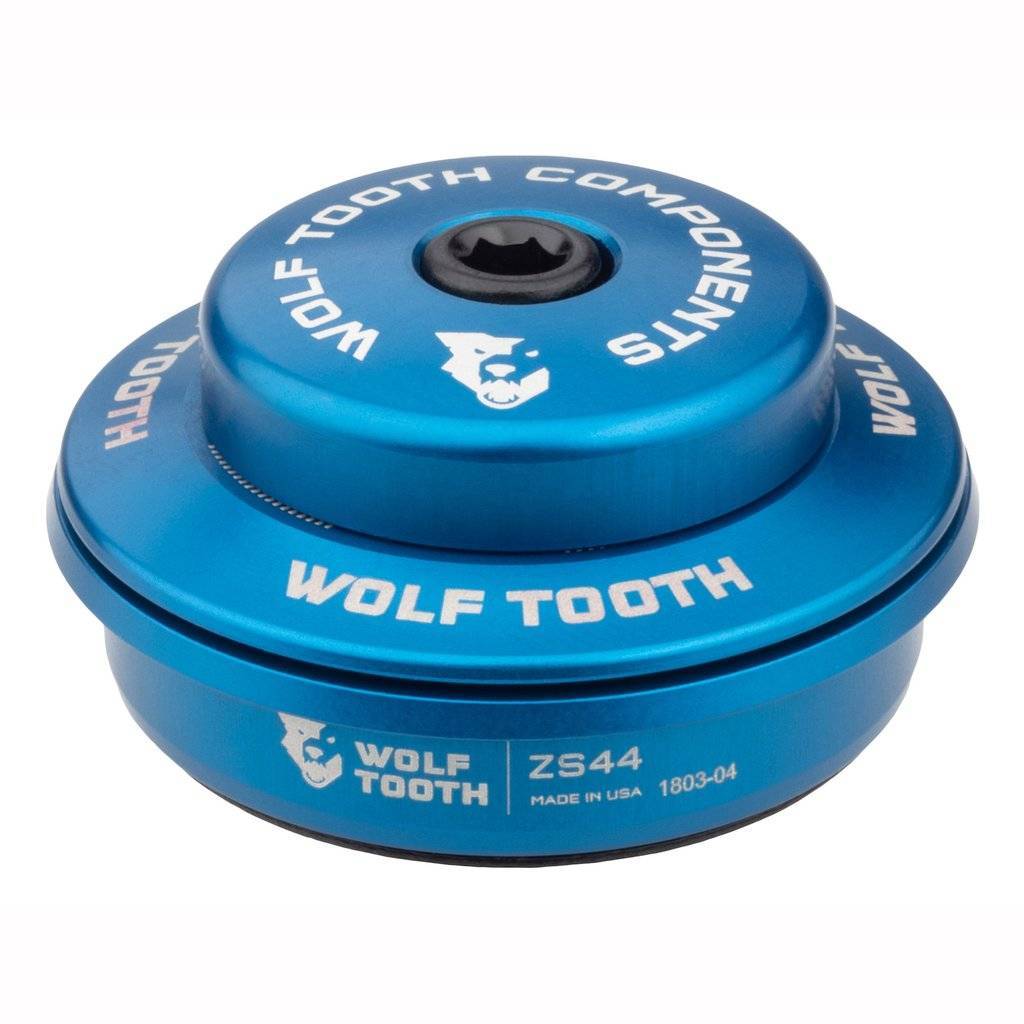

  Upper assembly features:

  • Ultralight stem cap with integrated spacer plus an aluminum bolt and a star nut.
  • 6mm top cover = 6mm total stack.
  • O-ring seal prevents water intrusion around steerer tube.
  • Custom-molded upper lip seal provides additional protection for upper bearing.

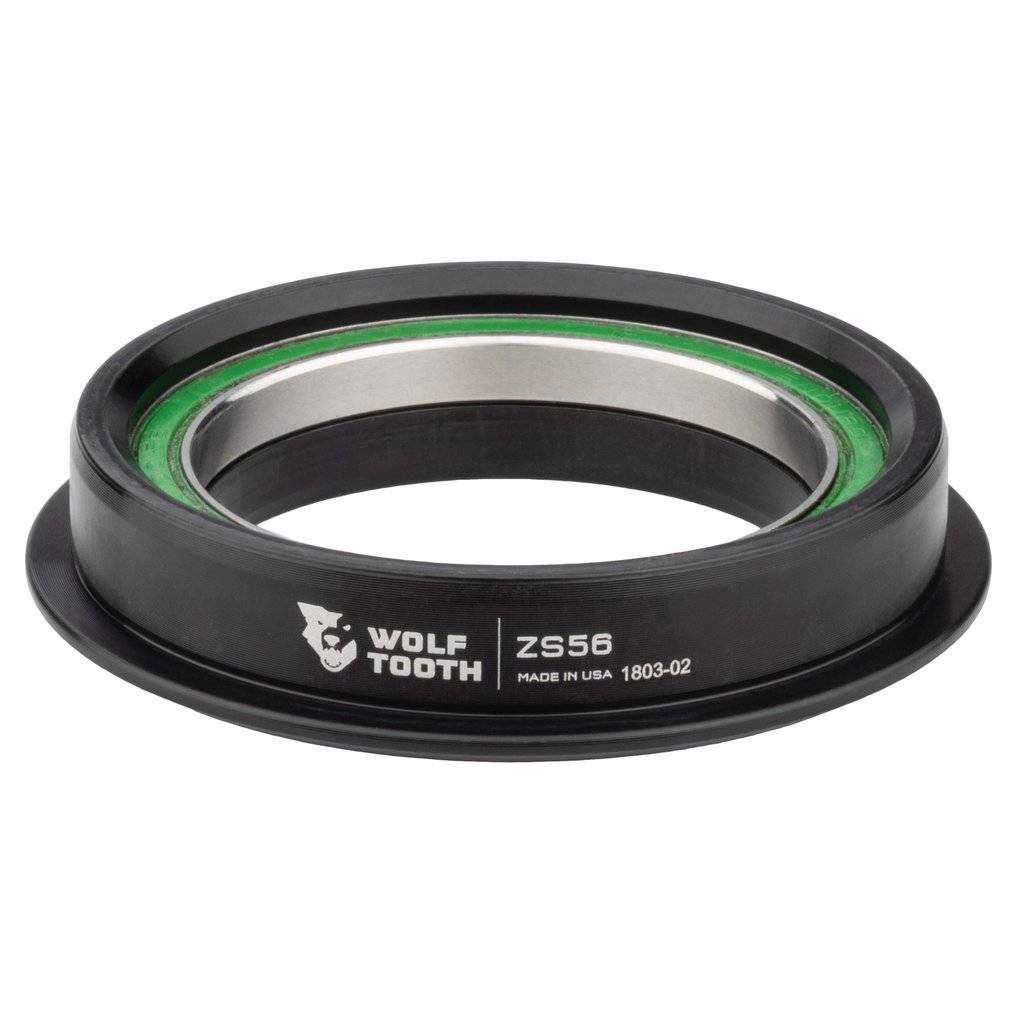

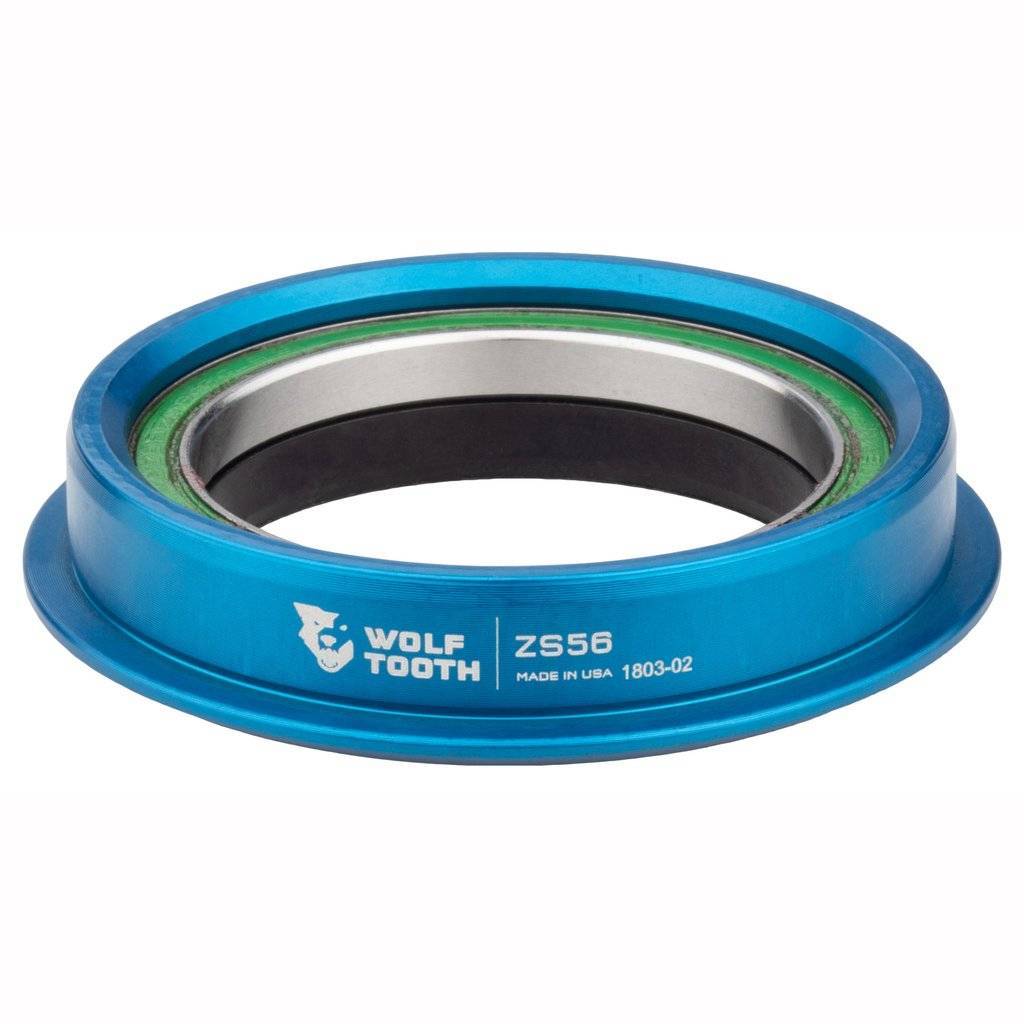

  Lower assembly features:

  • Custom-molded dual-lip seal on the crown race protects lower bearing in the toughest conditions.
  • All components precision machined in-house at Wolf Tooth from aircraft grade aluminum to ensure the highest level of quality.
  • Service and additional parts available.

  Recommendations

  The Wolf Tooth crown race installation adapter will help avoid damage to crown race seals.

  Related Products

  • Precision headset spacers
  • Wolf Tooth crown race installation adapter
  • Premium ZS Headsets

  Tech Specs

  Weight: 55-58g
  Material: 6061 aluminum

  Made in the USA
