SHIFTMOUNT
SHIFTMOUNT
Regular price
€29,99 EUR
Regular price
Sale price
€29,99 EUR
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
INFO

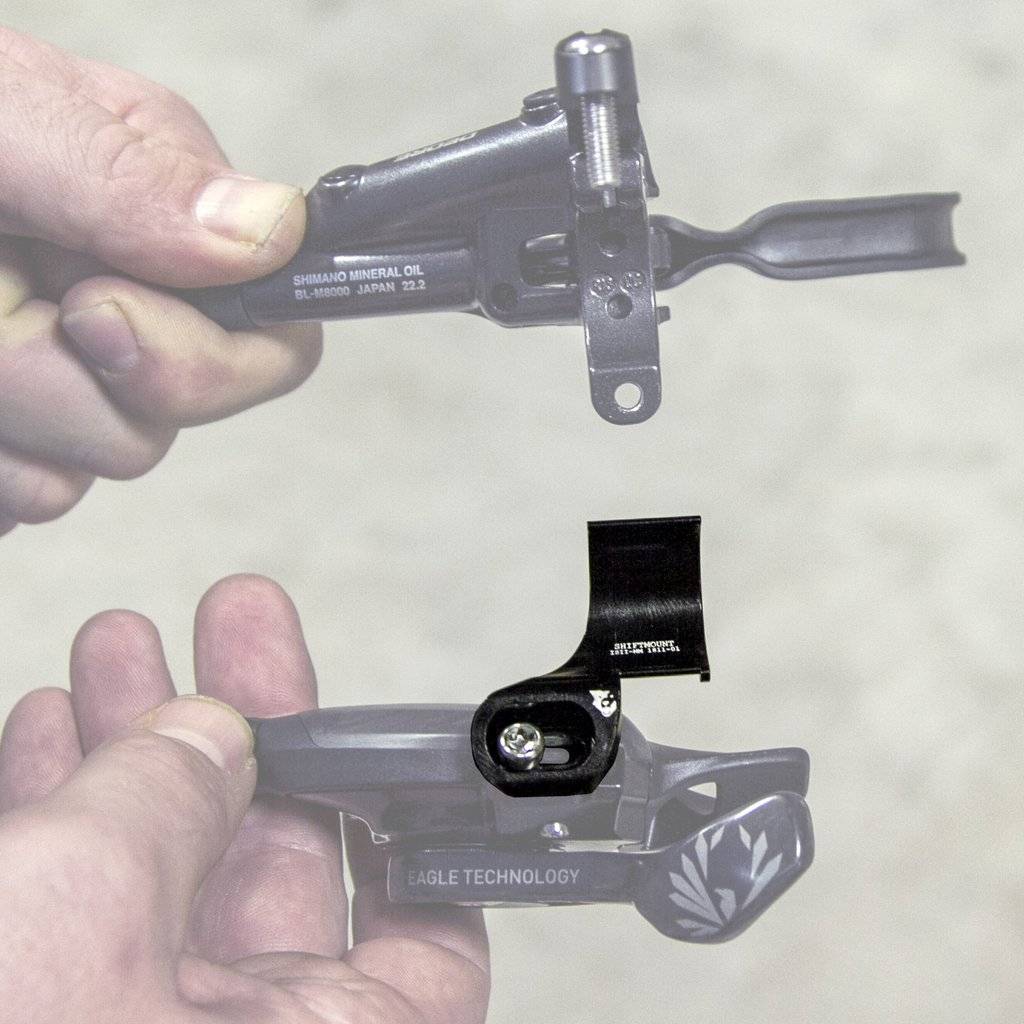

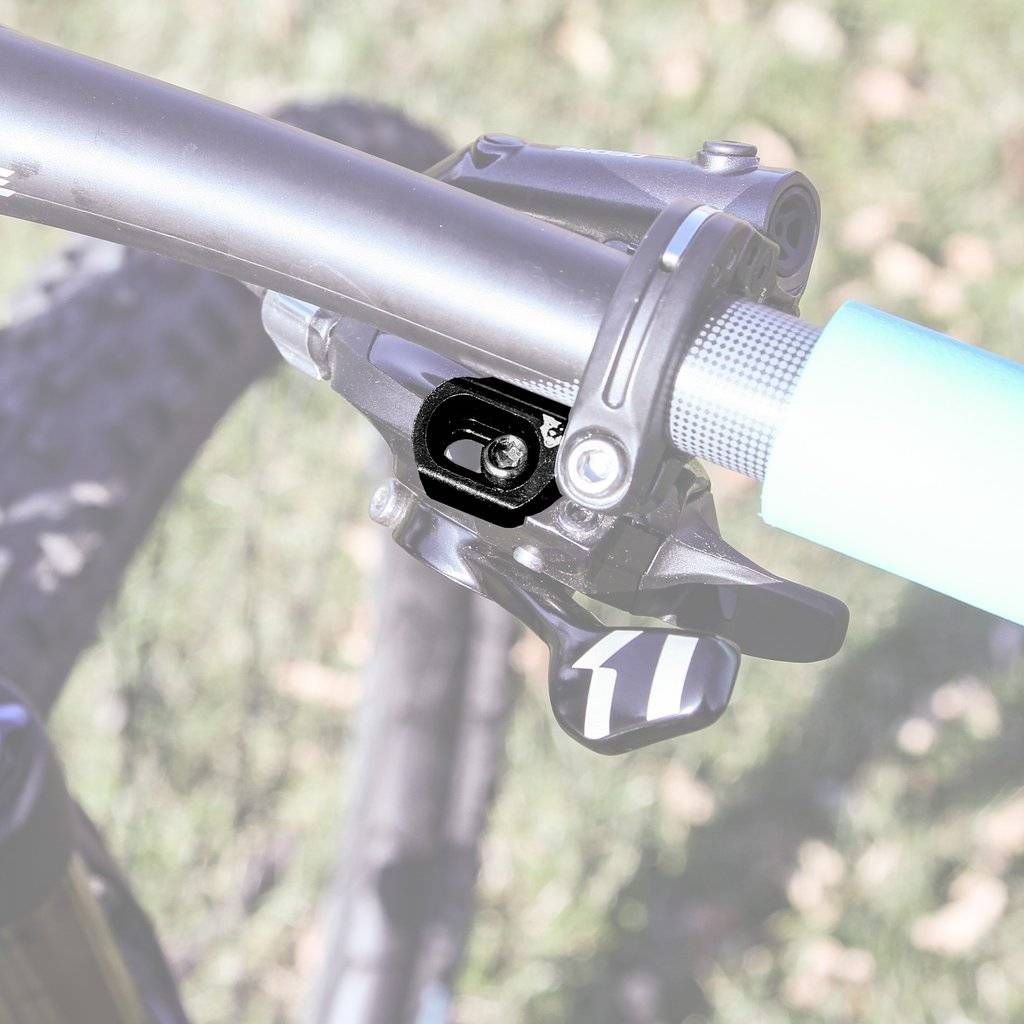

ShiftMounts are adapter mounts that allow you to integrate SRAM and Shimano shifters with several different brakes from Shimano, SRAM, and Magura. Handlebar space is prime real estate and the ShiftMount seamlessly integrates brakes and shifters for a clean look.
Mount Type
ShiftMount naming convention is [shifter type - brake type]
- MM-ISII is for a SRAM MatchMaker shifter mounting to a Shimano I-SPEC II brake

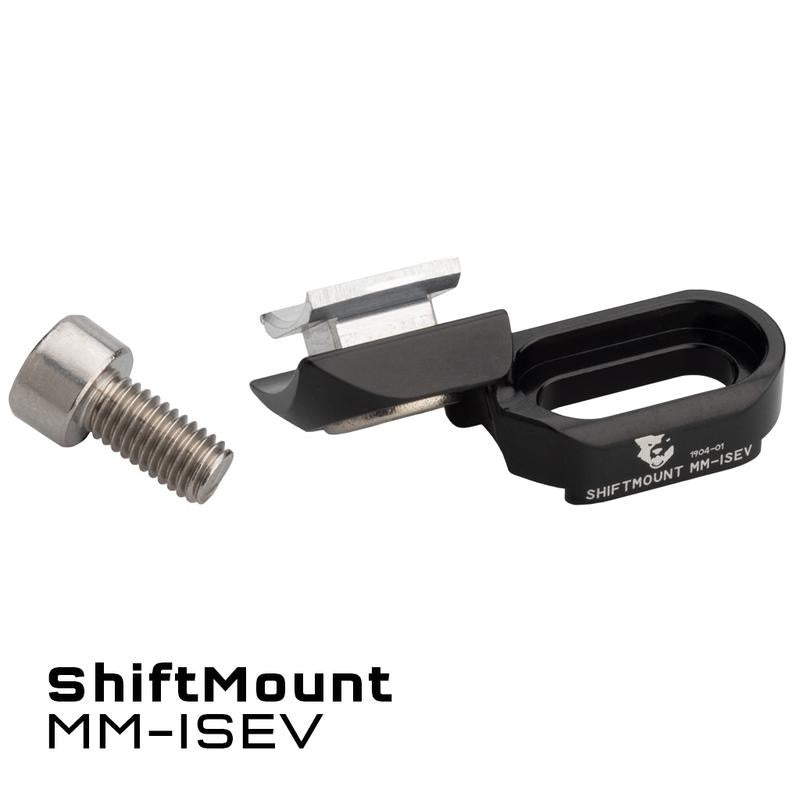

- MM-ISEV is for a SRAM MatchMaker shifter mounting to a Shimano I-SPEC EV brake

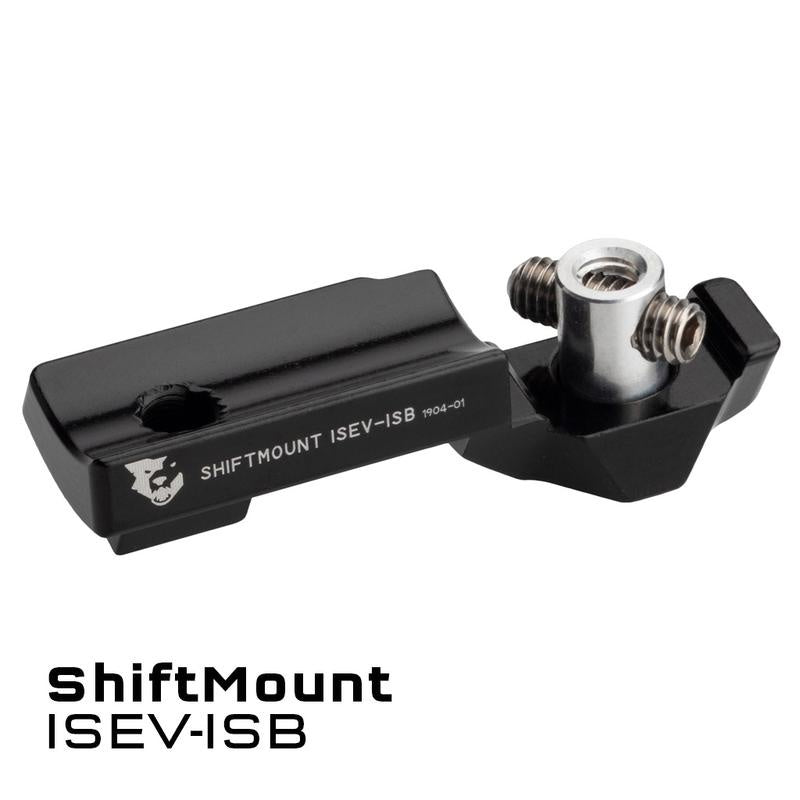

- ISEV-ISB is for a Shimano I-SPEC EV shifter mounting to a Shimano I-SPEC B brake

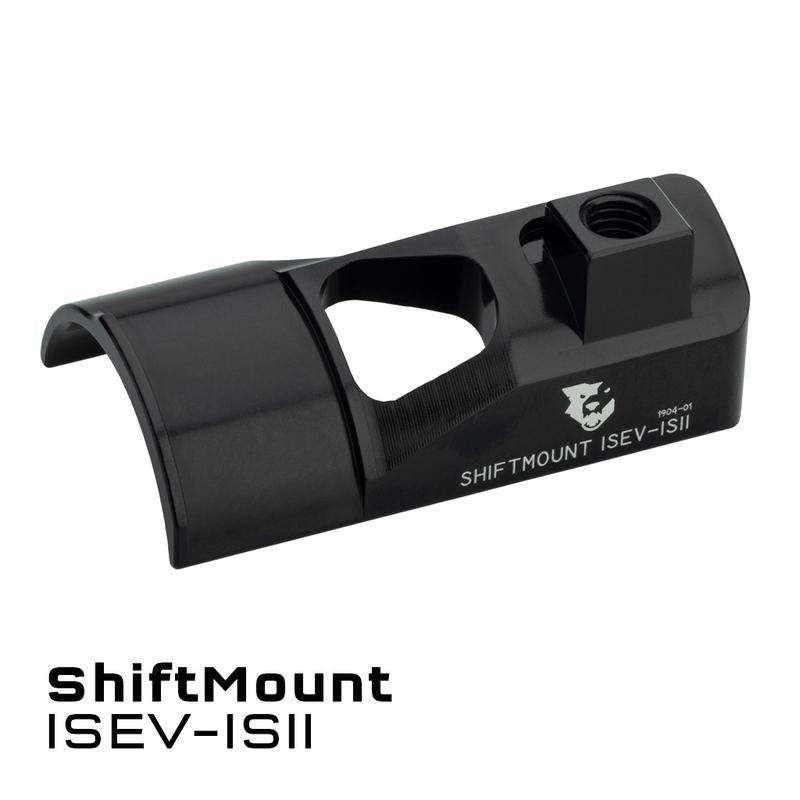

- ISEV-ISII is for a Shimano I-SPEC EV shifter mounting to a Shimano I-SPEC II brake

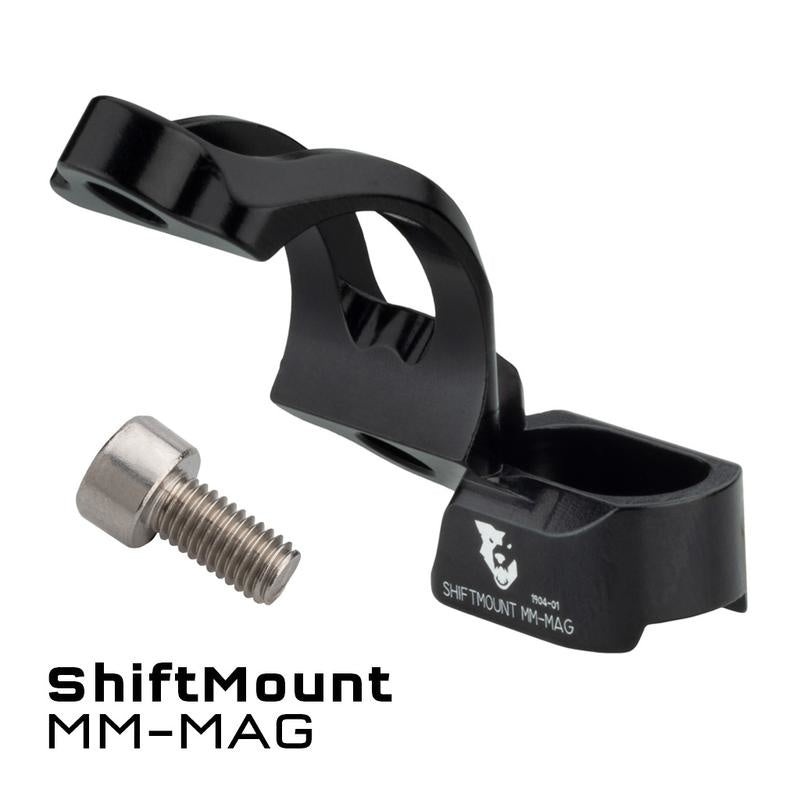

- MM-MAG is for a SRAM MatchMaker shifter mounting to a Magura brake

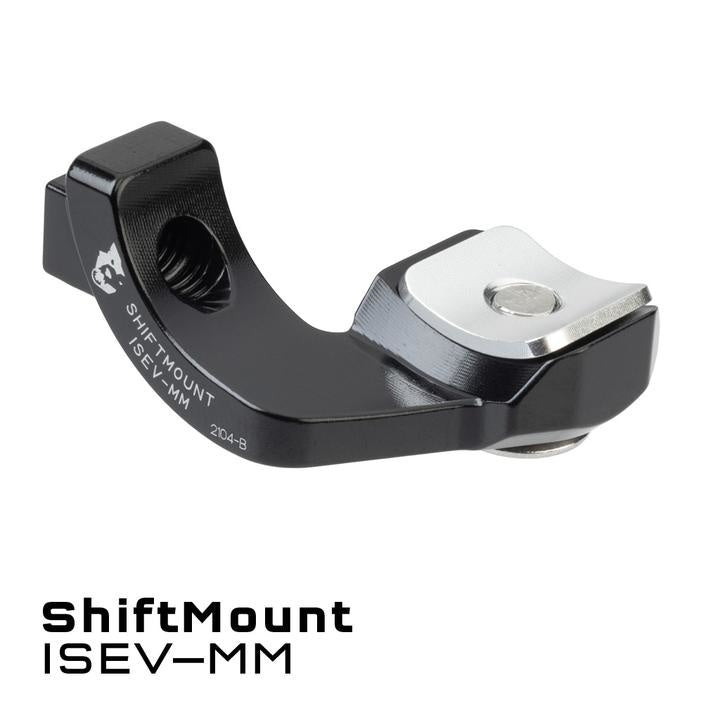

- ISEV-MM is for a Shimano I-SPEC EV shifter mounting to a SRAM MatchMaker brake

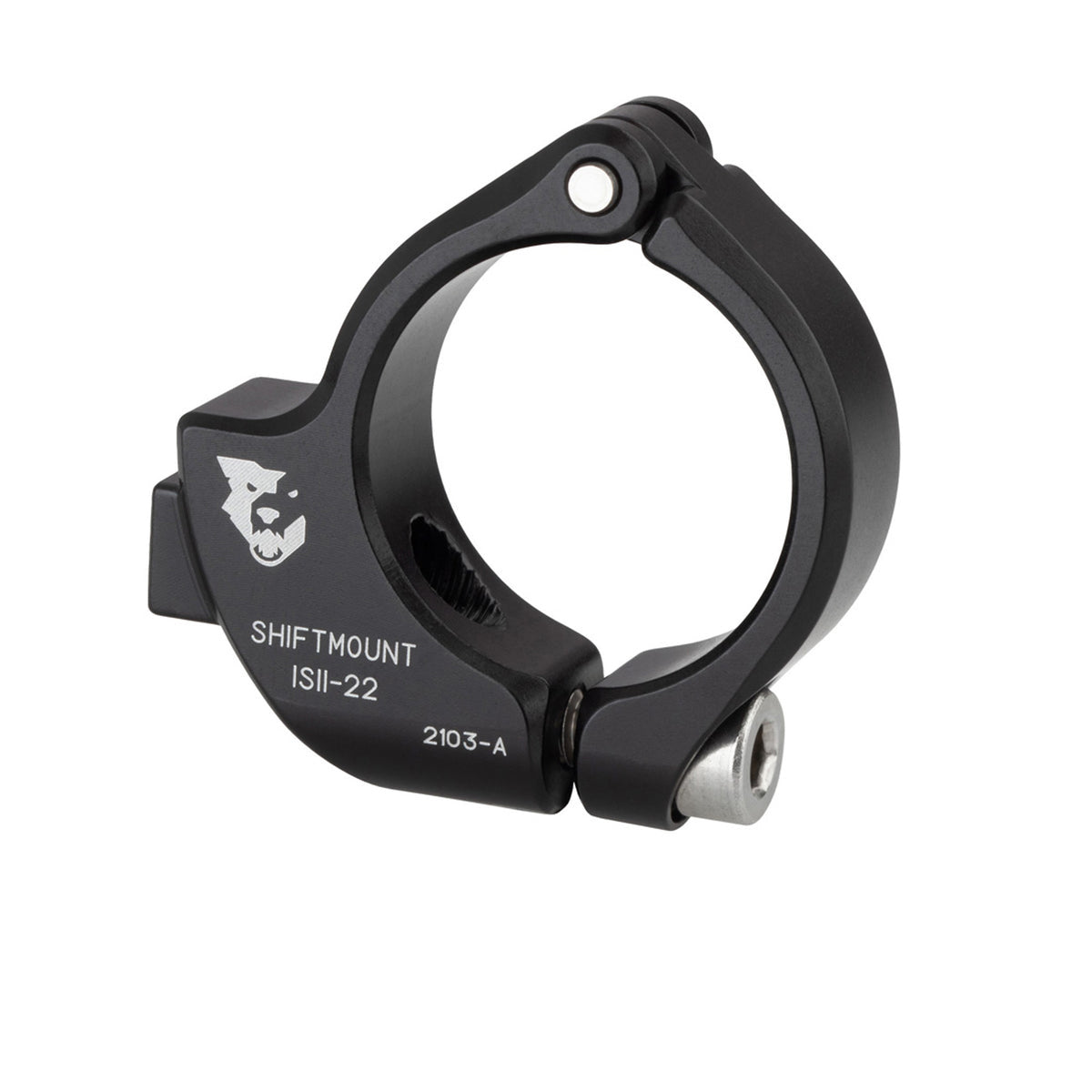

- 22 Clamp-ISII is for a Shimano I-SPEC II shifter mounting directly to a handlebar

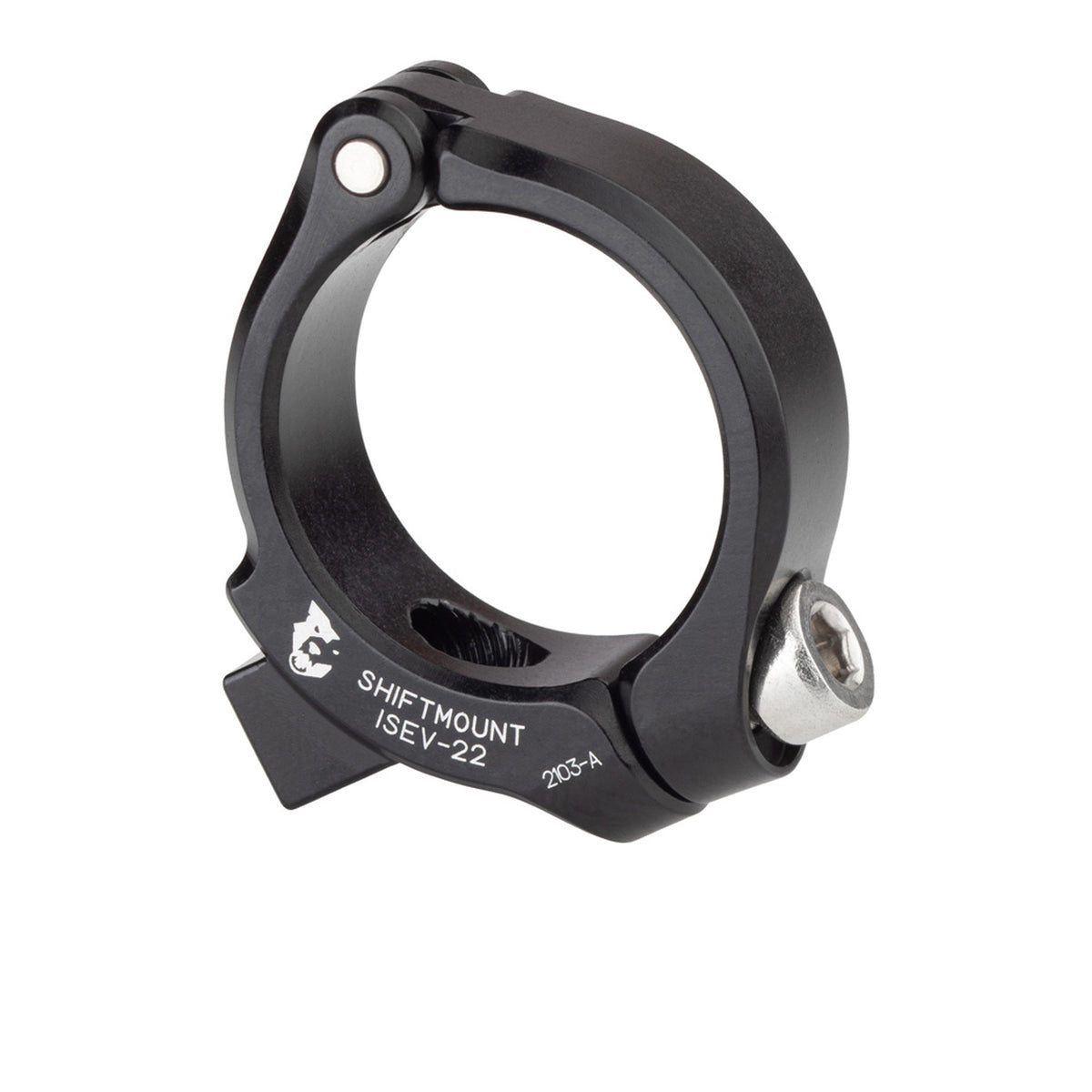

- 22 Clamp-ISEV is for a Shimano I-SPEC EV shifter mounting directly to a handlebar
Compatibility
- Designed to work with rear (right side) brakes and shifters.
- Consult the brake and shifter manufacturers to understand which mounting interface you have on your brakes and shifters.
- MM-ISEV is compatible with M9100, M9120, M8100, and M7100 Brakes. It is not compatible with Deore M6100 or M4100 brakes.
- MM-ISEV, MM-ISII, & MM-MAG is compatible with but not designed for SRAM AXS. With SRAM AXS, the shift lever will be further towards the end of the bar, or closer to the rider's hand than is ideal for most riders.
- Shimano I-SPEC A, Hope, and TRP brakes are not supported.
- Shimano I-SPEC EV to Magura brakes is not supported because of geometric challenges.
- For handlebar clamp ShiftMounts tighten clamp bolt to 1-2 Nm max torque.
Mounting Type by Brake Model
| Shimano Brakes | ||
| ISPEC-EV | ISPEC-II | ISPEC-A&B |
| XTR M9100 | XTR M9020 | Saint M829 |
| XT M8100 | XTR M9000 | XT M780 |
| SLX M7100 | XT M8000 | SLX M670 |
| Deore M6100 | SLX M7000 | Deore M615 |
| Deore M4100 | Deore M6000 | XTR M980 |
| XTR M95 | ||
| Zee M640 | ||
| Shimano model # can be found on the fluid resevoir | ||
| SRAM Brakes | ||
| MatchMaker X | Not Compatible | |
| Guide RS | Code R | Guide T |
| Guide R | Code RSC | Level |
| Level TL | G2 R | Level T |
| Level TLM | G2 RS | |
| Level Ultimate | G2 RSC | |
| Guide RE | G2 Ultimate | |
| Guide T | ||
| MAGURA Brakes | ||
| All current models are compatible |
Related Products
- Other cockpit accessories
Tech Specs
Weight: (Including hardware) MM-ISII • 10.5g | MM-ISEV • 9g | ISEV-ISB • 10g | ISEV-ISII • 6g | MM-MAG • 12g | ISEV-MM • 9.5g | 22 Clamp-ISII • 12.5g | 22 Clamp-ISEV • 10g
Material: 6061-T6 aluminum
