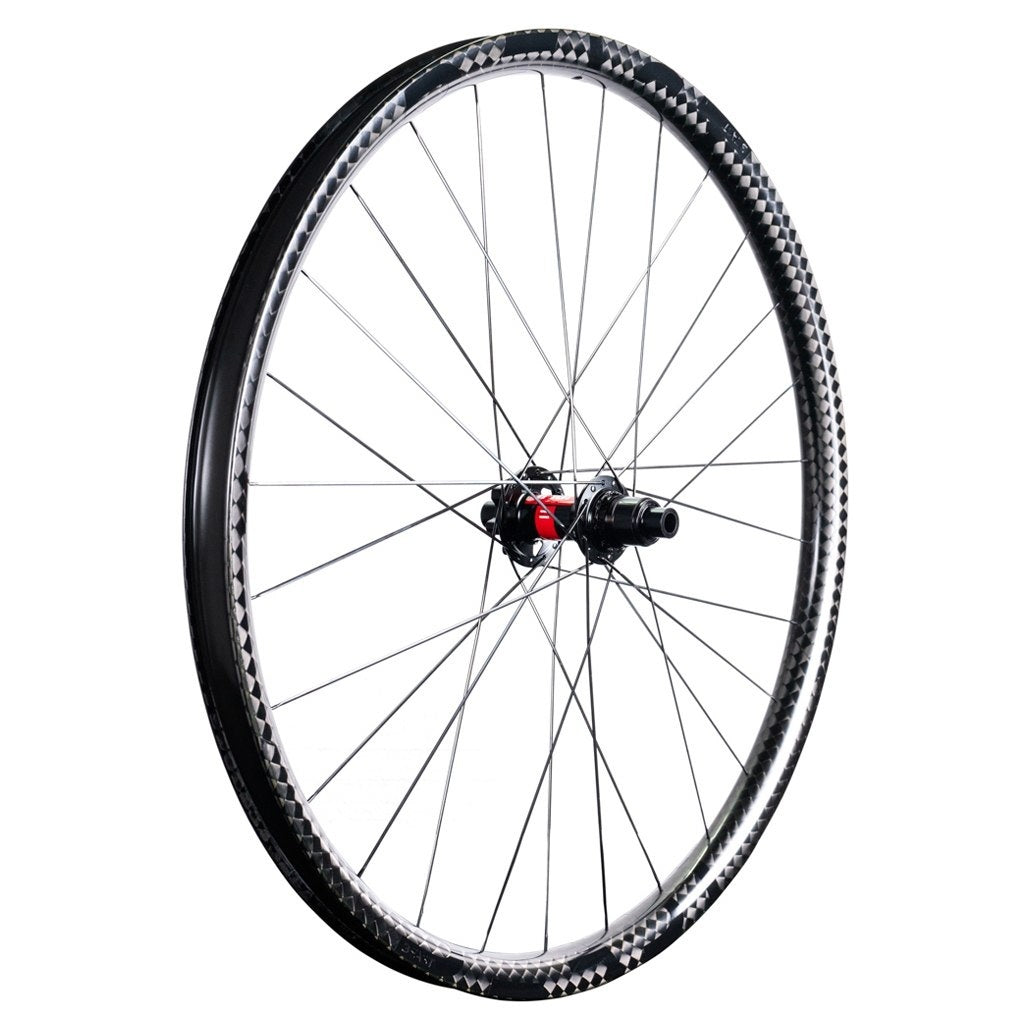

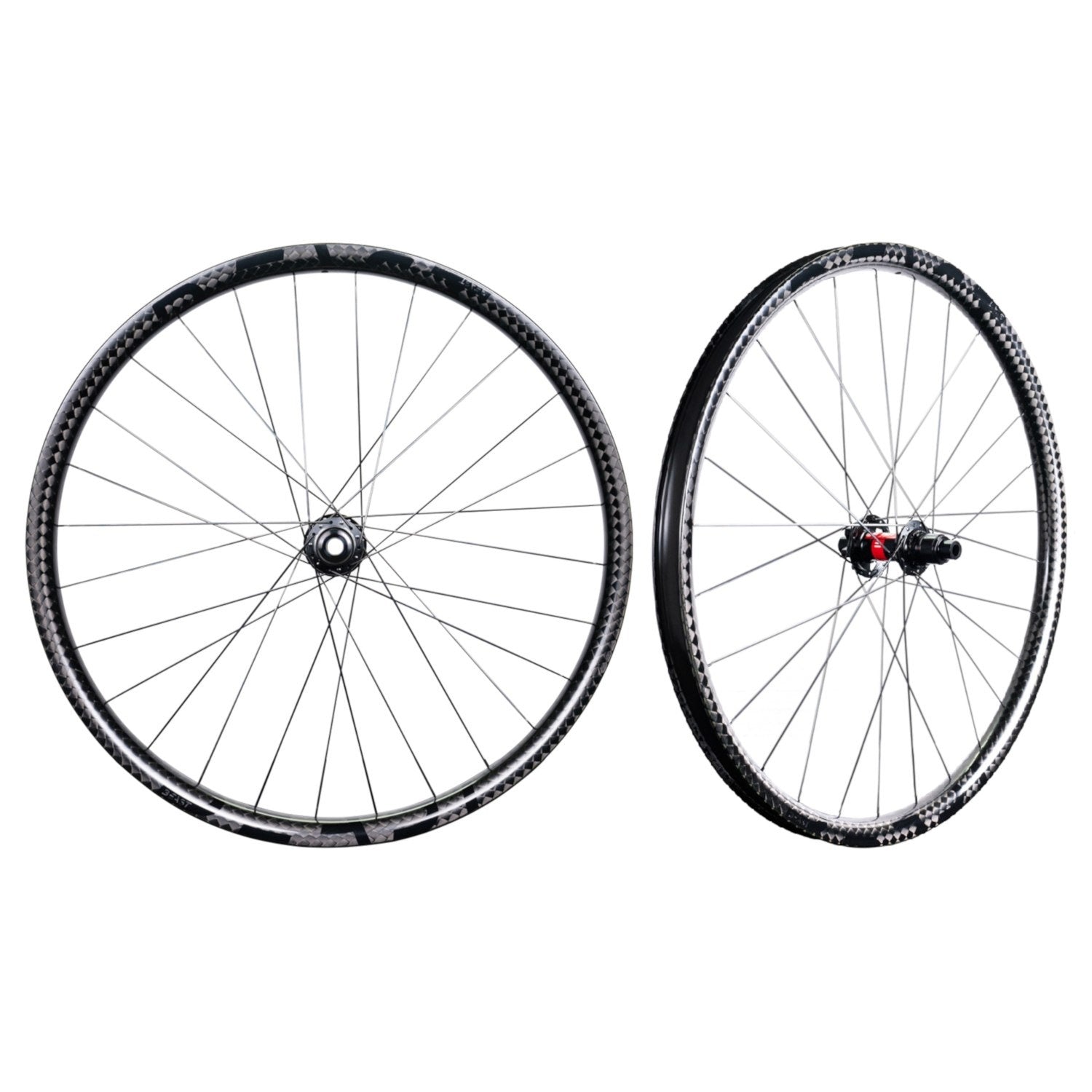

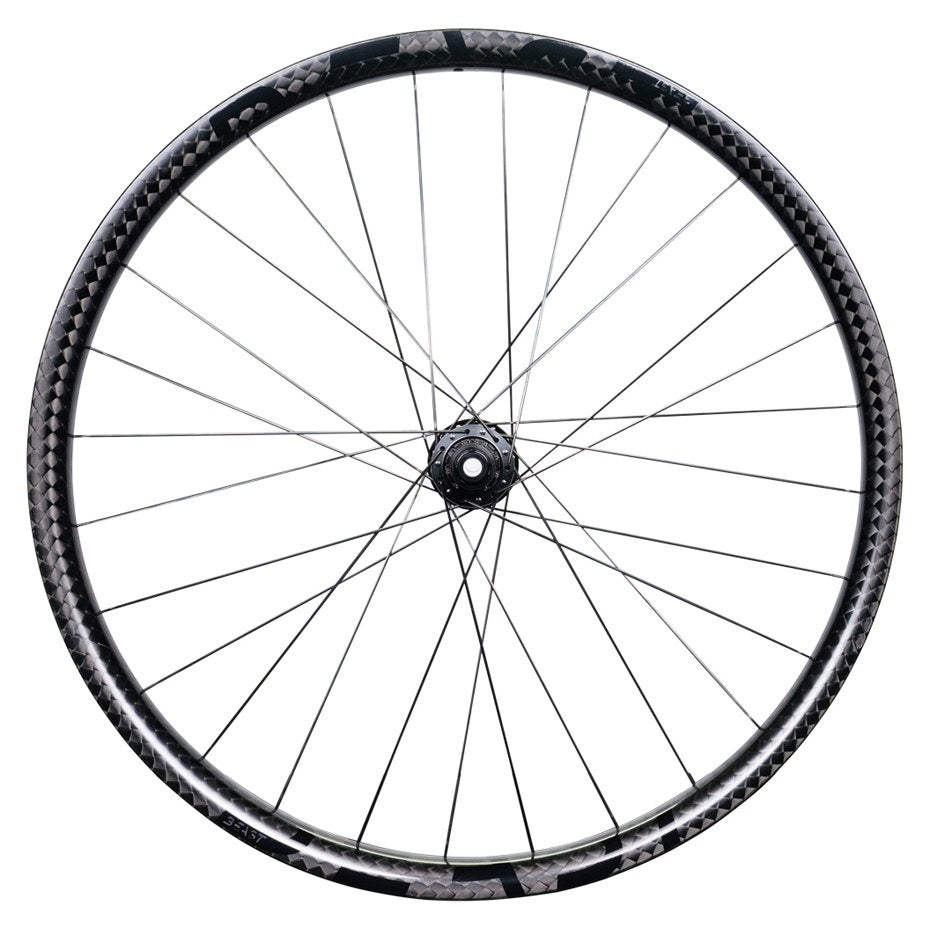

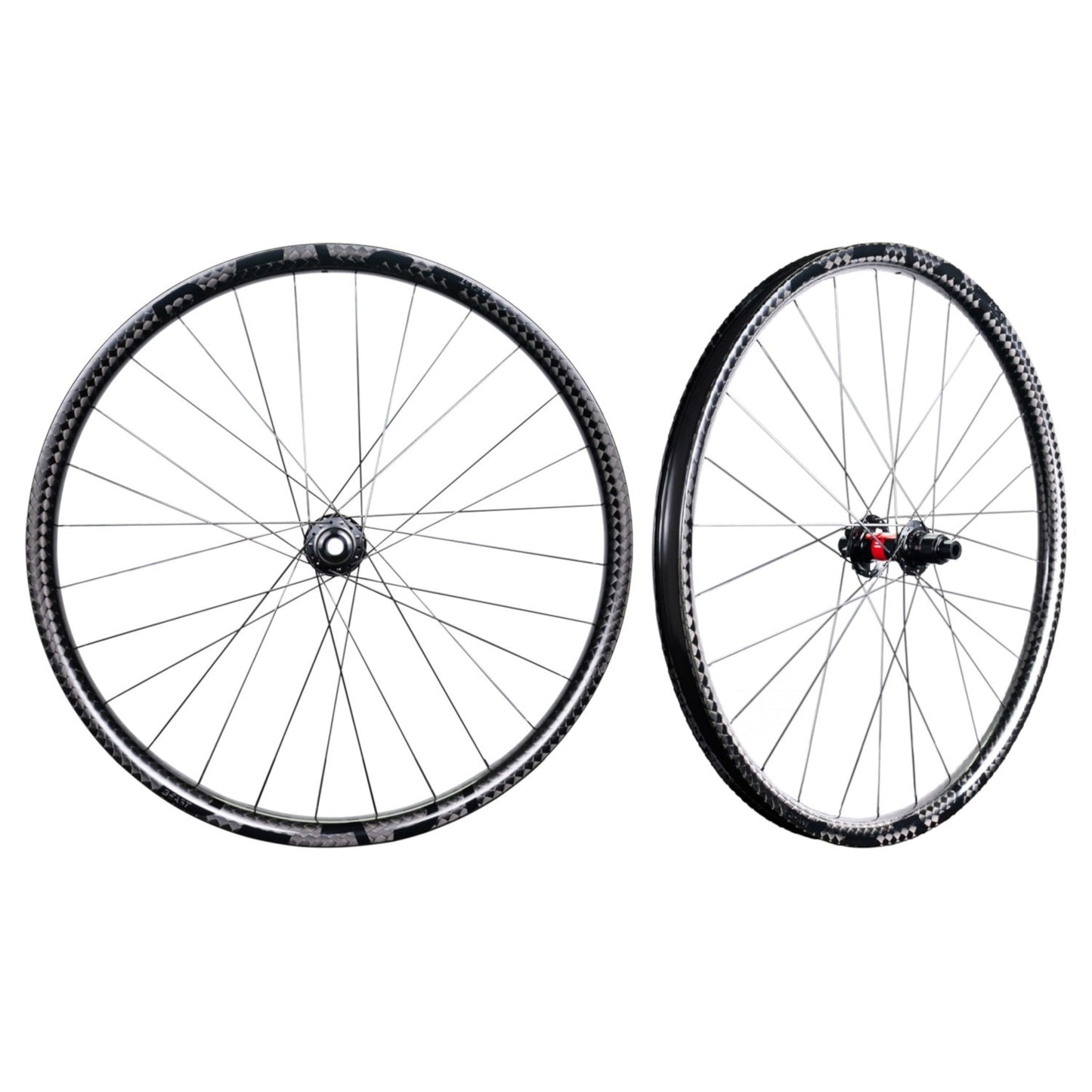

ED 30 SQUARE Black | DT Swiss 240
ED 30 SQUARE Black | DT Swiss 240
Impossible de charger la disponibilité du service de retrait
INFO
One of our pros describes the ED30 as “inconspicuous”, which is his idea of the highest praise possible. What he means is you don’t have to worry about this rim when you're racing; you can concentrate on your ride. Handmade in Germany.
Design & Innovation Award Winner 2019

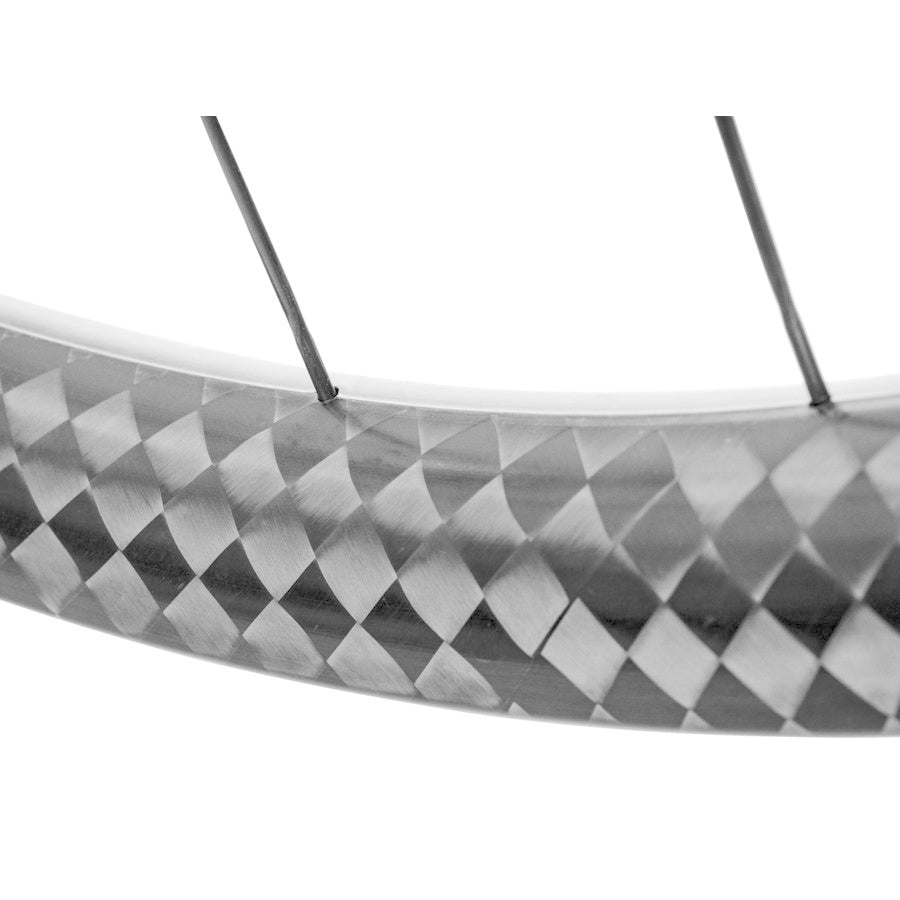

We developed this rim with the aim of producing a component that is sufficiently stiff and sturdy but still comfortable in harsh conditions and heavy-duty use. It has outstanding impact tolerance thanks to the reinforced rim flange. Even when the going gets tough and the trail really starts to shake you up, you’ll keep your cool. The ED30 won’t let you down.
We meticulously spoke our wheels by hand.
Tubeless Ready | Hookless Design | Disc Only
Technical Details
| Material | Carbon |
| Range of Use | Enduro | DH |
| Price | UD- and SQ-Finish: 1999€ (as complete wheelset) |
| RIM DETAILS | |
| Size | 27.5″ | 29″ |
| Height | 25 mm |
| External Width | 36.6 mm |
| Internal Width | 30 mm |
| Rim Flange Width | 3.3 mm |
| Hole Count | 28 | 32 |
| ERD | 551 mm | 587 mm |
| Offset | 2 mm (asymmetrical) |
| Weight UD-Finish | 481 g | 503 g |
| Weight SQ-Finish | 492 g | 515 g |
| Weight Tolerance | 5 % |
| Weight Limit | none |
| Colors | UD- and SQ-Finish: black |
| WHEELSET DETAILS | |
| Front wheel | 15 x 110 mm Boost |
| Rear wheel | 12 x 148 mm Boost |
| Hub | DT Swiss 240s |
| Freewheel | SRAM XD | Shimano HG | Microspline |
| Spokes | Sapim D-Light | black |
| Nipple | Sapim | Aluminium | black | external |
| Rim Tape | including |
| Weight 27.5″ | UD-Finish: 1523 g SQ-Finish: tba g |
| Weight 29″ | UD-Finish: 1595 g SQ-Finish: tba g |
| Weight Tolerance | 5 % |
| Weight Limit | none |
