Wolf Tooth Components

B-RAD Mounting Bases

B-RAD Mounting Bases

Prix habituel €19,95 EUR
Prix habituel Prix soldé €19,95 EUR
Vente Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
Options
Afficher tous les détails

INFO

Bases are the foundation for the B-RAD system and the rest of the B-RAD system mounts to them

  • Reposition bottle cages using existing bottle cage mounts on your bike
  • Lightweight, durable, rust-proof materials
  • Customize storage to your specific needs with flexible B-RAD system

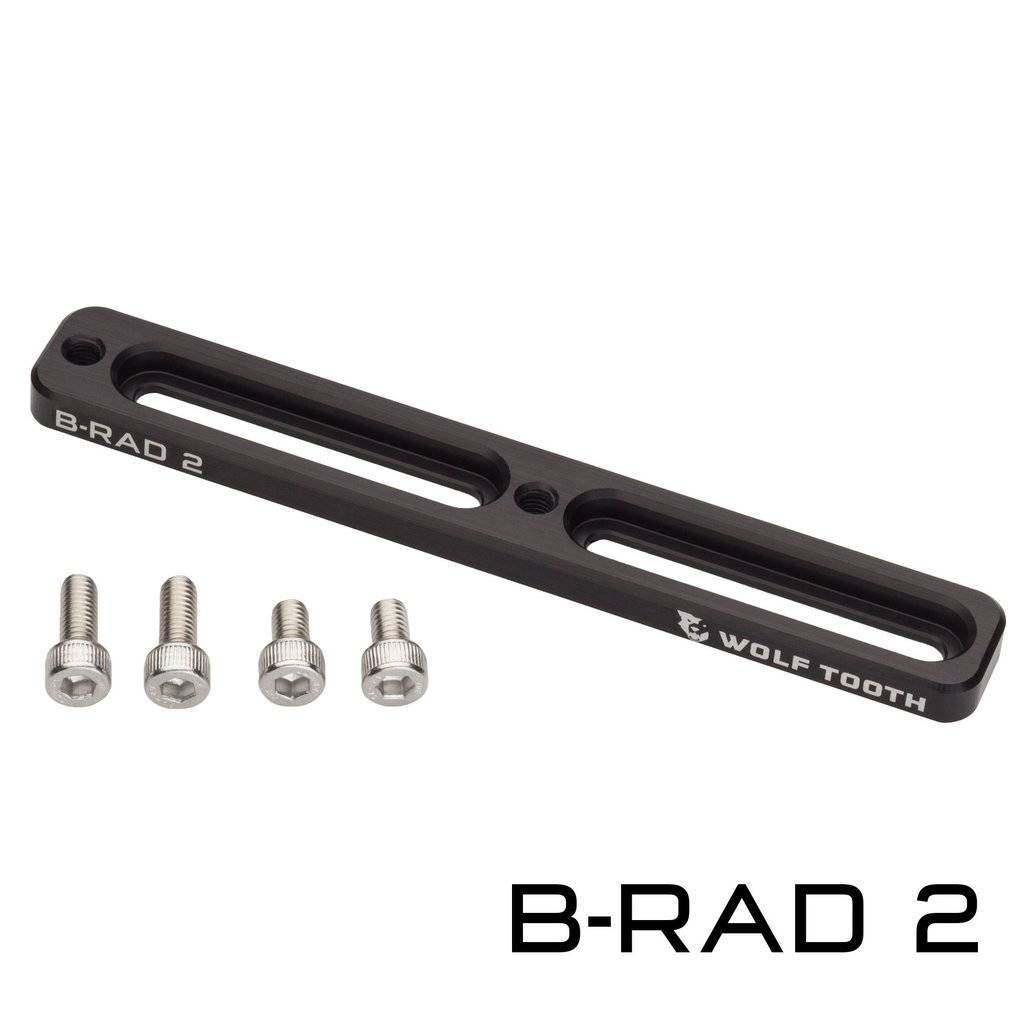

B-RAD 2

  • The 2-Slot Base can move bottle or other accessory to an optimal location even on a smaller or dual suspension frame
  • B-RAD 2 base instructions

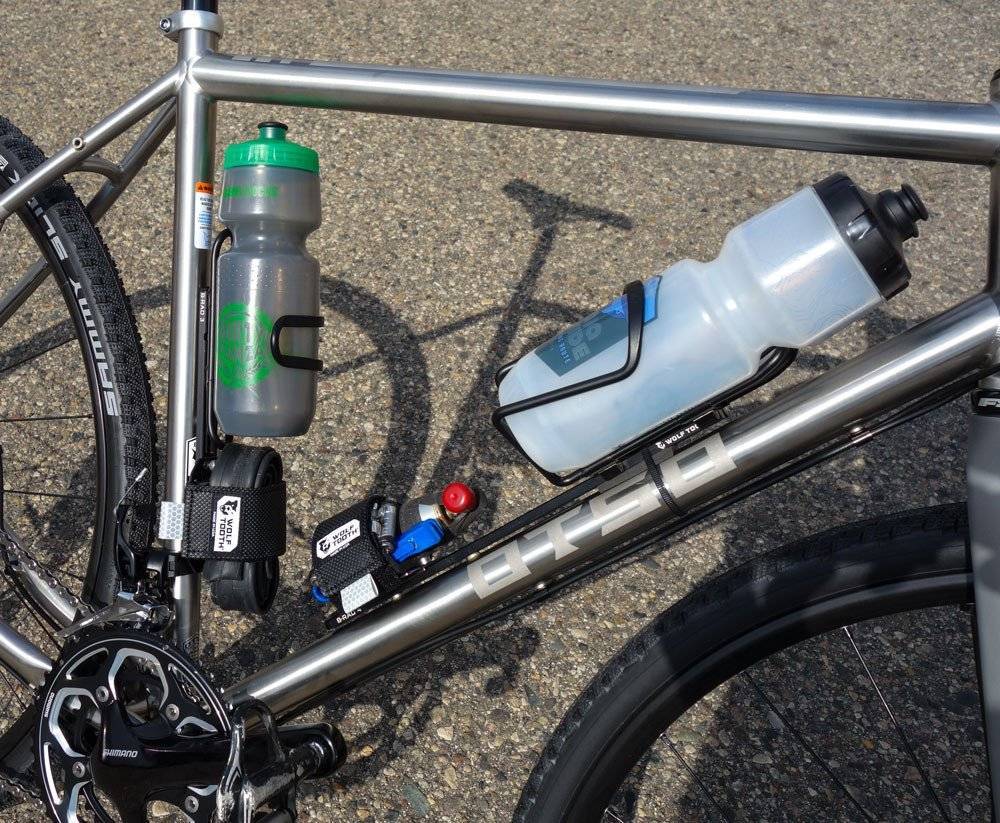

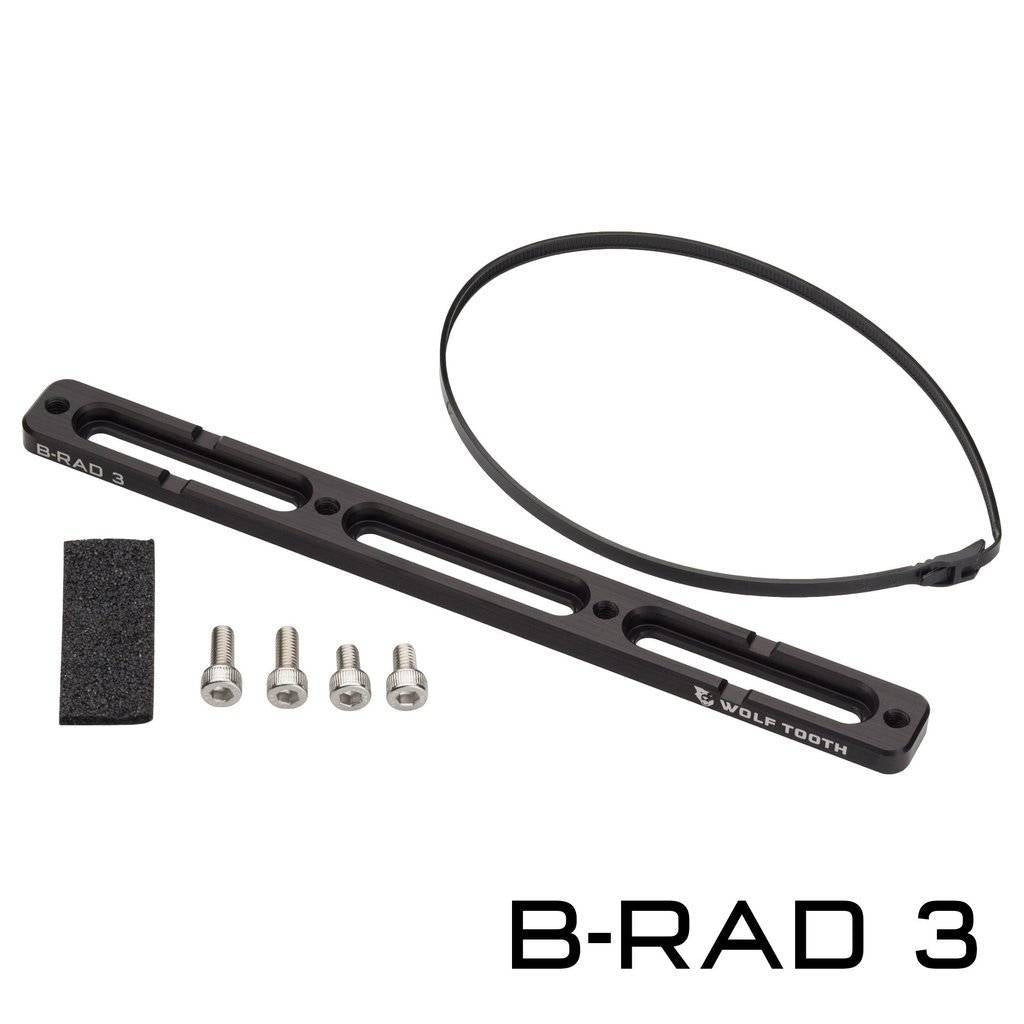

B-RAD 3

  • The 3 slot base with 4 threaded holes provides additional adjustment and mounting options vs the B-RAD 2. A typical application would be to mount a bottle cage in the forward threaded holes with a B-RAD accessory tucked behind it. This mounts perfectly to triple bottle mounts on frames and forks. The B-RAD 3 includes zip ties, channels for the zip ties, and a foam pad for secure mounting
  • B-RAD 3 base instructions

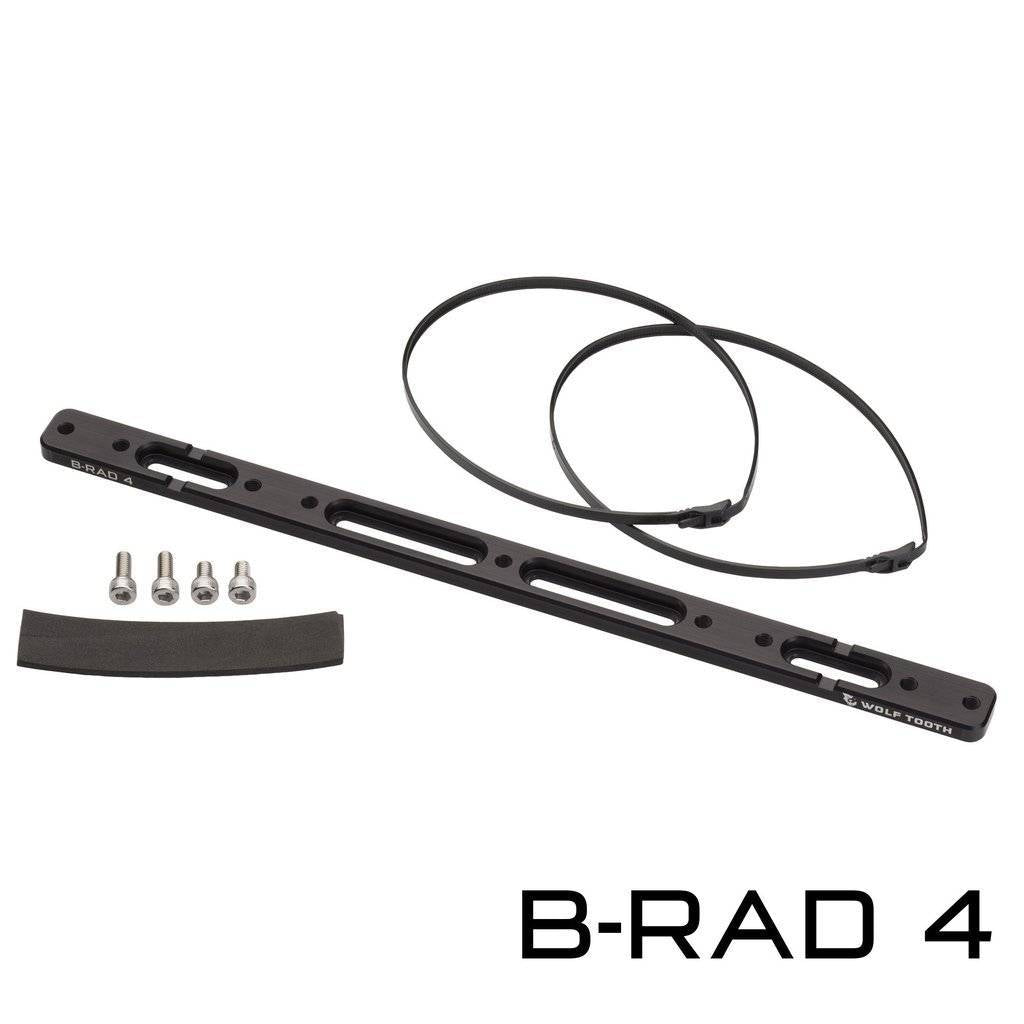

B-RAD 4

  • The 4 slot base is the longest base with 9 threaded holes for the ultimate flexibility and capacity when bike packing, touring, commuting or just exploring on 2 wheels. It′s long enough to mount 2 small bottles inline or multiple accessories. The B-RAD 4 includes zip ties, channels for the zip ties, and a foam pad for secure mounting
  • B-RAD 4 base instructions

DOGBONE

  • The Dogbone can be used to offset a bottle or other accessory to an optimal location. Most commonly used for smaller, curved or dual suspension frames
  • Dogbone base instructions

Complementing products:

  • All the B-RAD bases and accessories

Compatibility:

  • Mounting any of the bases requires the use of at least 2 standard threaded bottle cage mounts. B-RAD 3 and 4 should use the auxiliary foam pad (to protect your frame) and zip tie to secure the base. Any other mounting methods are not recommended
  • You may need a Space Out Kit or similar method to clear the front derailleur clamp. Be sure to use bolts with additional length equivalent to the extra spacing added
  • Compatible with any frame that uses standard 64mm spacing bottle cage braze-ons (basically every modern frame)

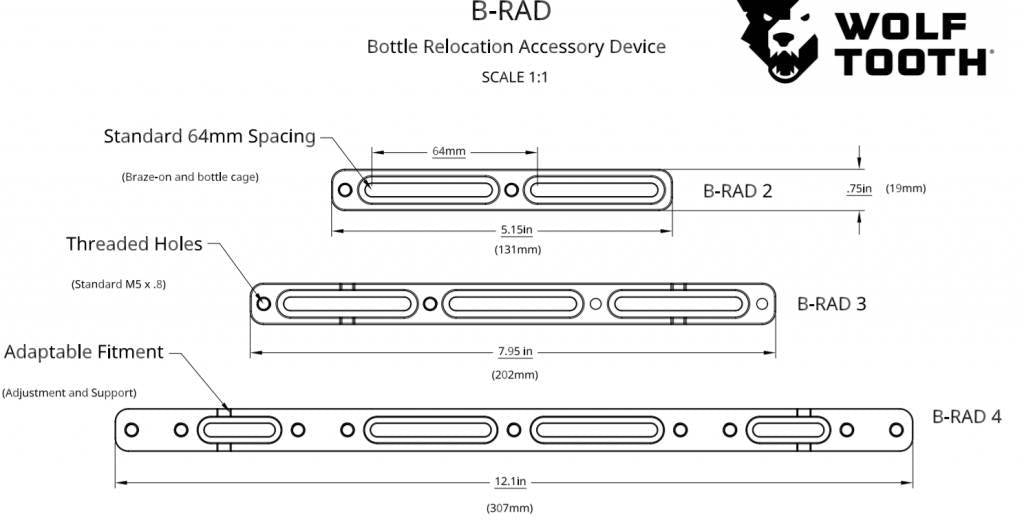

  • Print this document in a 1-1 format to see how the different B-RAD mounting Bases fit on your bike.

 Tech Specs:

  • 6061-T6 aluminum brackets, stainless hardware, foam support pad with zip ties (B-RAD 3 and 4 only)
  • Weights (no hardware)
    • B-RAD 2 – 27g
    • B-RAD 3 – 41g
    • B-RAD 4 – 75g
    • Dogbone – 10g
  • 18-8 stainless bolts included
  • Maximum load per base 1700g
  • Torque 3-4 NM
  • Made in the USA

______________________________

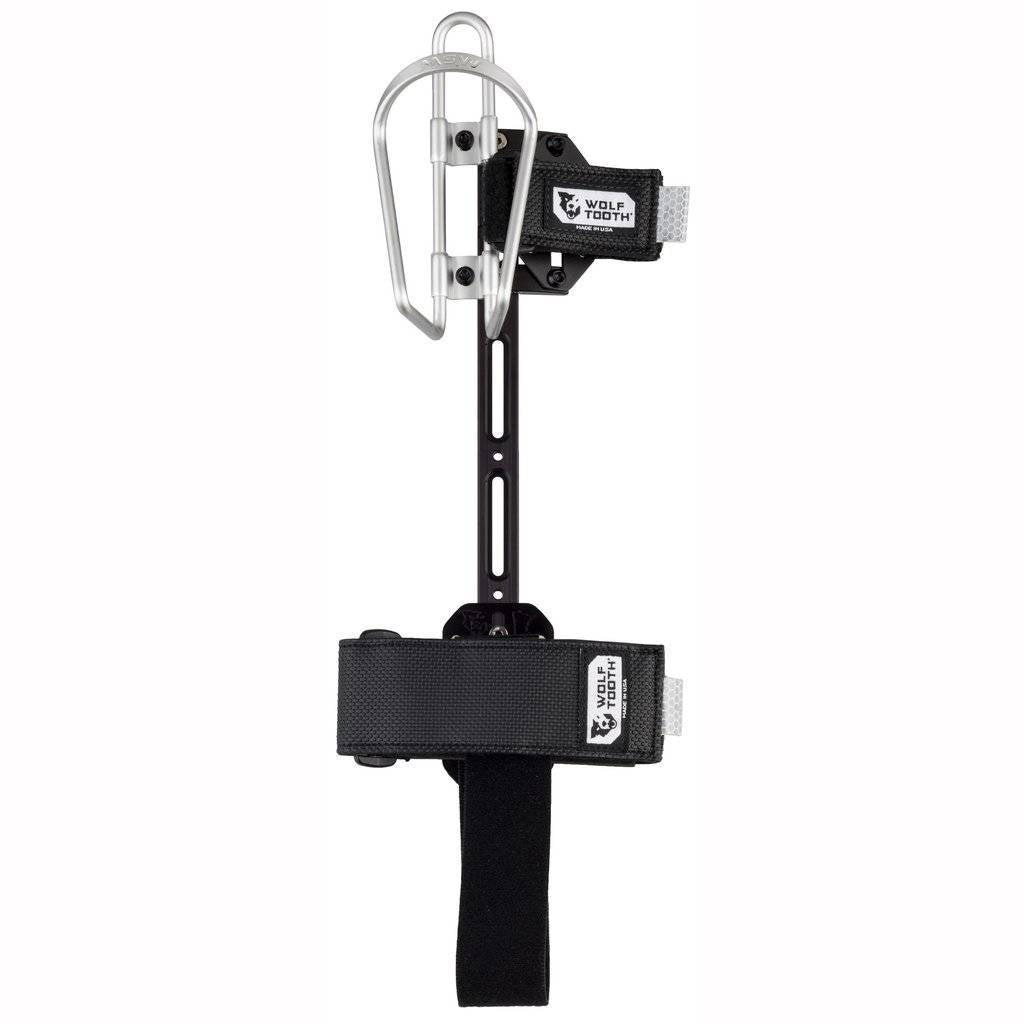

B-RAD™ — BOTTLE RELOCATION & ACCESSORY DEVICE
An innovative, flexible system for organizing on-bike bottle storage and accessories

Customize storage to your specific needs with the flexible 3-step B-RAD system. Here is how it works:
B-RAD Base – available in a variety of lengths

  • Attaches to bottle cage mounts on bike
  • Provides platform for the B-RAD system

B-RAD Mount

  • Attaches to B-RAD Base
  • Secures accessories to the Base
  • Accessory-specific mounts available

Accessories

  • Held in place by B-RAD mounts or straps
  • Carry ride essentials like bottles or tools
